HY-LABEL
| Quantity: | |
|---|---|

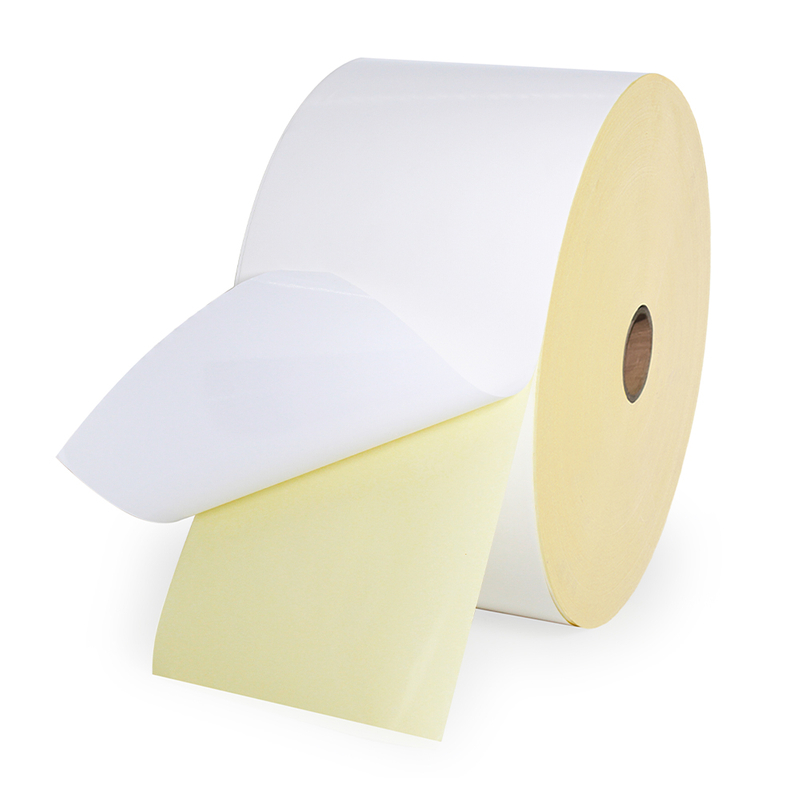

80gsm Matte Thermal Transfer Label is a self-adhesive label made with 80g/m² matte vellum copper paper as the face stock. It features a non-reflective, matte white surface that delivers sharp thermal transfer printing and a premium visual appearance. This material is widely used for barcode labels, logistics labels, retail tags, and product identification, making it a standard choice for production lines, warehousing, and inventory management.
Property | Specification |
|---|---|
Face Stock | |
Grammage | 80 g/m² ± 5% |
Thickness | approx. 70 μm |
Whiteness | ≥ 91% ISO |
Roughness | approx. 1.0 μm |
Gloss | ≤ 15% Hunter (matte finish) |
Opacity | ≥ 89% |
Stiffness | MD 1.2 mNm / CD 0.7 mNm |
Adhesive | |
Type | Permanent acrylic standard high-tack/Permanent hotmelt |
Initial Tack | ≥ 14 N (FTM 9) |
Shear Strength | ≥ 2.0 h (FTM 8) |
Minimum Application Temperature | +5°C |
Service Temperature Range | -20°C to +80°C |
Printing Compatibility | |
Recommended Ribbon | Wax or wax-resin ribbon |
Compatible Printing Methods | Thermal transfer, direct thermal (with thermal coating), laser/inkjet (sheet-fed) |
Pre-test | Recommended before bulk use |
Excellent Printability. The matte vellum copper surface is smooth and ink-receptive, suitable for various printing methods with good die-cutting characteristics. In thermal transfer printing, it delivers sharp text and clean edges, with stable barcode scan grades.
Premium Matte Appearance. The non-reflective matte finish provides a soft, elegant look that reduces glare and enhances readability under direct light — ideal for high-end product labels and branding applications.
Reliable Adhesion. The acrylic emulsion adhesive provides good adhesion to common substrates (paperboard, plastic films, non-polar surfaces, etc.), with a balance of initial tack and shear strength suitable for flat and simple curved surfaces.
Cost-Effective. As one of the most common self-adhesive label materials, 80gsm matte vellum copper offers economic pricing while maintaining print quality and adhesion performance — ideal for high-volume applications.
Retail & Logistics: Supermarket price tags, logistics waybills, inventory management labels, shelf markers
Product Identification: Food & beverage labels, cosmetic labels, pharmaceutical labels, appliance nameplates
Apparel & Industrial: Clothing hangtags, production line labels, matte color-printed labels
Premium Branding: High-end product labels requiring a non-reflective, elegant finish
Ribbon Selection: For thermal transfer printing, wax-based ribbon (economical, general purpose) or wax-resin ribbon (scratch-resistant, long-term preservation) is recommended. Compatibility testing is advised before bulk use.
Application Conditions: Recommended application temperature not below +7°C. Substrate surface should be clean and dry. Not recommended for highly curved surfaces.
Storage: In original unopened packaging, store at +20°C and RH 50%. Shelf life approx. 1 year from production date.
